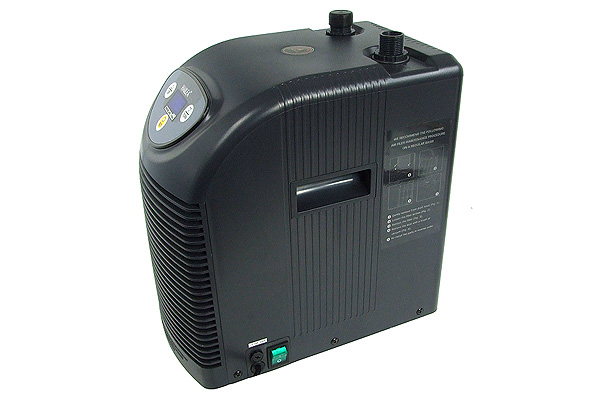

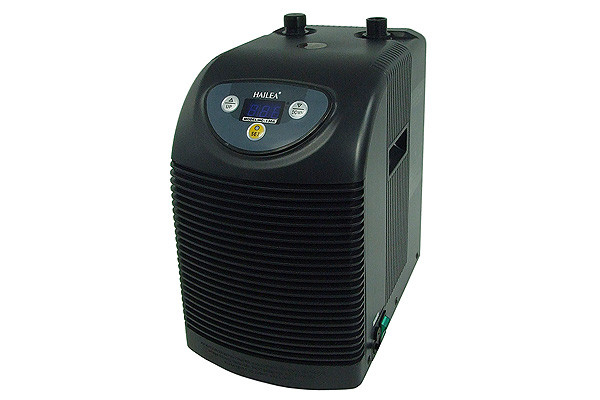

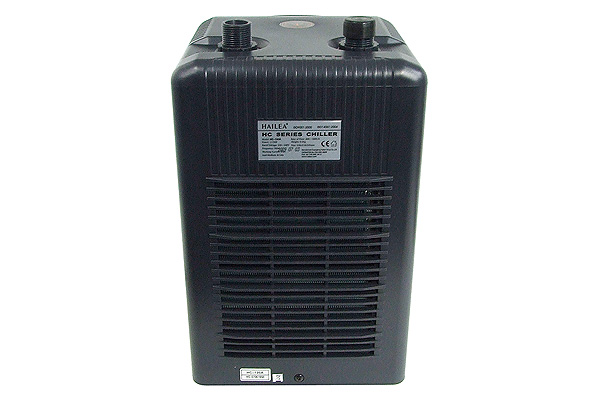

Durchlaufkühler Hailea Ultra Titan 150 (HC130=110Watt Kälteleistung)

Article no: 37023
Manufacturer no: HC-130A
EAN: 4049469079062
Weight: 11,5 kg
Available: Unfortunately out of stock

2227 Visitors show interest

379 Customers have recently purchased this product.

Next delivery of the item is the 11 December 2024

Payment by instalments available between 400€ and 5000€ value of goods

€356.65 *

Prices incl. VAT plus shipping costs

connection adapter for ultra flow cooler 150 to G1/4

€5.49*

Hailea fitting with union nut 60° 12mm for Hailea Ultra Titan 150/200

€9.99*

Eheim Universalpumpe 2400 / 1260 (1260210) (2400L/h)

€154.34*

Please inform me as soon as the product is available again.

RAK flow cooler Hailea Ultra Titan 150 (HC130=110W cooling capacity)

€356.65 €0.00 Prices incl. VAT plus shipping costs

connection adapter for ultra flow cooler 150 to G1/4

€5.49*

Hailea fitting with union nut 60° 12mm for Hailea Ultra Titan 150/200

€9.99*

Eheim Universalpumpe 2400 / 1260 (1260210) (2400L/h)

€154.34*

The cooling units from Hailea have been used in trusted waterchillers from other manufacturers... more

Close menu

Product information

The cooling units from Hailea have been used in trusted waterchillers from other manufacturers for over 15 years. The new heat exchangers of the Ultra series are made from titanium. Therefore the chillers are perfect for watercooling systems. Another positive aspect about the Hailea units is the low noise emission. The pricing of the new series is also pleasantly affordable.

New revision:

New cool design
More robust materials for even longer lifespan
Lowered noise emissions
Suitable for continuous operation

Noise emissions:
The small chillers (like HC150) have a noise emission of 20dB(A) only and can be used near the computer / aquarium without disturbing.
Bigger models (like HC500) should be additionally decoupled to reduce the noise level if necessary
The models HC1000 und HC 2000 should be extra decoupled or maintained in a seperate room.

This waterchiller basically replaces the radiator as the coolant is chilled to the desired temperature by this unit. Temperatures down to 4°C are possible, please note that at low temperatures (high temperature difference) condensate may accumulate. Suitable insulation accessories are also available in our shop. Alternatively the coolant temperature can be set to just below room temperature to avoid this problem.
Thanks to the low temperatures incredible overclocking potential is available! The lifespan of the components is extended by multiples. This system is also great for no-noise applications as the chiller can be located in another room.
We recommend integration of the chiller into the cooling loop in combination with a radiator. This allows use of the chiller when required (overclocking, Benchmarks, summer etc..) and use of the radiator during normal operation.

To estimate the required cooling performance here some non-binding estimates. The exact thermal emissions can be requested from the manufacturer of the hardware.
CPU: 80W (standard) to 150W (overclocked)
GPU: 50W (small cards) to 250W (current models such as GTX 980)
MB: 20 to 40W per component

The added values of your system must not exceed the given cooling capability of the chiller.

What aquarium size can be cooled with my water chiller?
The manufacturer provides the following data:
Model / aquarium size in liters:
HC-130 / 50-100L
HC-150 / 50-200L
HC-250 / 100-300L
HC-300 / 100-400L
HC-500 / 200-800L
HC-1000 / 300-1000L
HC-2000 / 400-1500L

We at Aquatuning wish to advise you that the manufacturer’s data was obtained under optimal circumstances. The temperature response of the aquarium may greatly vary because of insulation, heat from lights respectively sunlight. Hence we recommend using the larger model when reaching the upper limit of the aquarium size values.

Note regarding shipping:
This unit can only be shipped via a forwarding company. As the chipping charges differ by distance an online calculation is not possible. Please provide your full telephone number and E-Mail address when ordering, we will contact you after the order is complete. The shipping charge is approximately 50€ within Germany.

Technical specifications:

Power: 1/15 PS
Cooling capacity: 110W
Recommended coolant flow: 200-1000 l/h
Weight: 9,2kg
Cooling agent: R134A
Dimensions: 338x218x325mm (LxWxH)

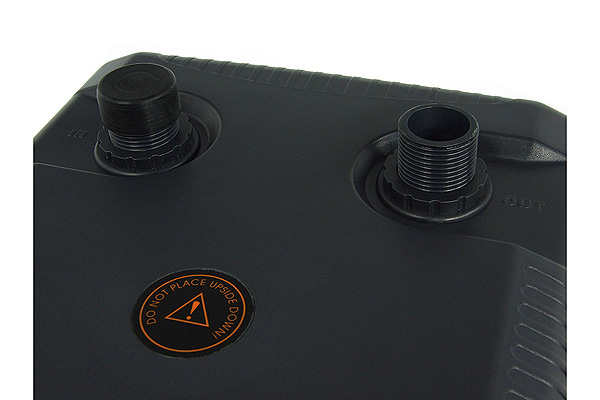

Connector outside diameter: 11-13mm
Heat exchanger material: Titanium
max. compressive load: 0,8bar

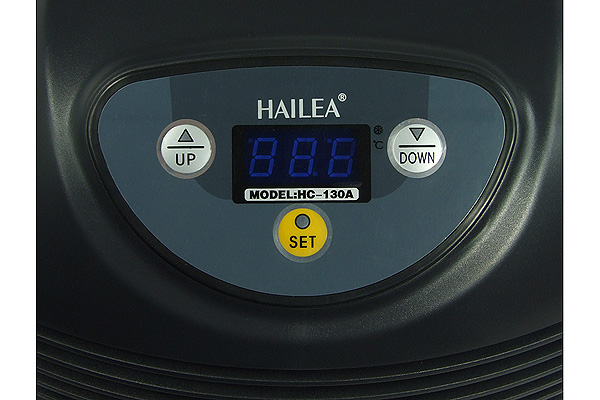

Temperature adjustments: Digital read-out (precision 0,1°C), temperature setting in 1°C steps
current demand: 0.8 A (50 Hz)
current drain: 184 W

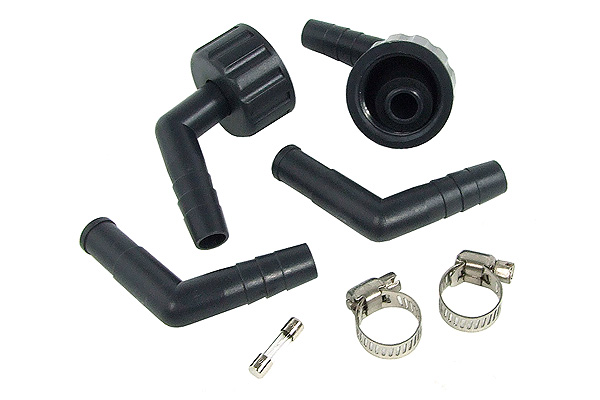

Scope of Delivery

1x Waterchiller Hailea Ultra Titan 150
2x 45° angle with rubber seal
2x 45° angle without rubber seal
2x suitable hose clamps

Note for first-time users:
If you should have problems with your chiller please contact us before returning the chiller to us. In most cases there is no actual problem with the chiller, but the functionality of the unit is not fully understood by the user yet. Please note the following: The compressor unit automatically switches itself on and off, if the temperature sensor is manipulated your warranty is void, the noise level or an allegedly not sufficient cooling performance are no reason for a reclamation. The chiller can only function properly if the cooling loop is equipped with a sufficiently powerful pump. If these facts are considered most reclamations can be avoided and you will greatly enjoy this product!

Note for aquarium-use:
The cooling performance is affected by the aquarium-lamp the reduced pump power due to filters and the thermal waste of the pump. We therefore recommend to order the ciller at least on power-lever higher that theoretically calculated

This product has been reviewed for you (by):

How2 (Userreview):

Hardwareluxx

Further links

Close menu

Jetzt nützliche Details ansehen... more

Close menu

Produktdetails

Questions & answers... more

Questions & answers

3 Frage(n) in anderen Sprachen.
Klicken Sie hier, um diese Frage(n) anzuzeigen.

Frage von Jens H. vom 10. October 2023

Kann ich dieses Aggregat mit einem Aussenfilter verbinden (Christal Profi e 902)

Antwort von Administrator vom 11. November 2023

Ja Filter können mit dem Chiller genutzt werden. Wichtig ist allerdings auch, dass eine passende Pumpe für die Förderung des Wassers eingebunden wird.

Frage von Bernd W. vom 07. July 2024

wie lange dauert es bis 4Grad Wassertemperatur erreiche? Muss ich die Pumpe Eheim Universalpumpe 2400 / 1260 dazu kaufen?

Antwort von Administrator vom 07. July 2024

Das kommt immer auf die äußeren Umstände an. Außentemperatur, Wassermenge, Pumpengeschwindigkeit etc. und eine Pumpe ist notwendig. Bei Unklarheiten wende dich gerne an unseren Support.

Frage von Guest #634488 vom 09. September 2024

Hallo, ich möchte meine Hydrokultur mit 90 Litertank gerne in den heißen Sommermonaten auf 18-20 Grad kühlen. Welche Pumpleistung sollte ich neben dem HC-150 verwenden um diese Menge effektiv zu kühlen? Vielen Dank Thomas

Antwort von Administrator vom 10. October 2024

Hierbei genügt eine Eheim CompactOn 600 (49011) vollkommen.
