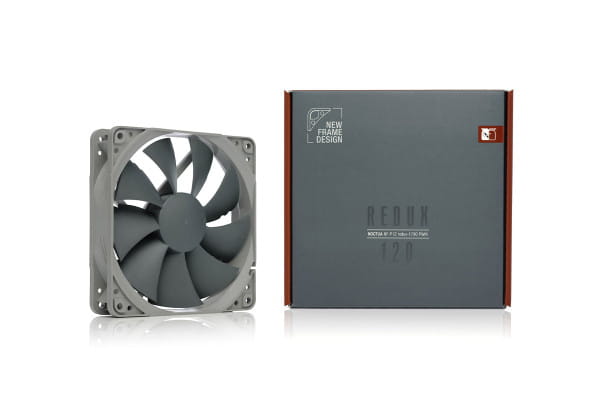

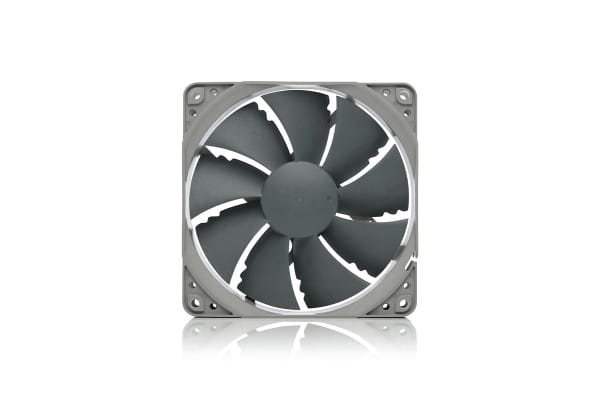

Noctua NF-P12 Redux-1700 PWM

Available soon: Available for pre-order

Payment by instalments available between 99€ and 5000€ value of goods

249 Visitors show interest

134 Customers have recently purchased this product.

€14.23 *

Prices incl. VAT plus shipping costs

Please inform me as soon as the product is available again.

L12 Noctua NF-P12 Redux-1700 PWM

€14.23 €0.00 Prices incl. VAT plus shipping costs

Specifically designed for pressure demanding applications such as CPU or radiator cooling, the... more

Close menu

Product information

Specifically designed for pressure demanding applications such as CPU or radiator cooling, the classic NF-P12 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components.

The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P12 premium fan. Its industry grade SSO bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P12 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1700rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.

Technical Data:

Dimensions: 120 x 120 x 25 mm
Mounting hole spacing: 105 x 105 mm
Connector & pin-configuration: 4-Pin PWM
Cable length: 40cm
Bearing: SSO-Bearing

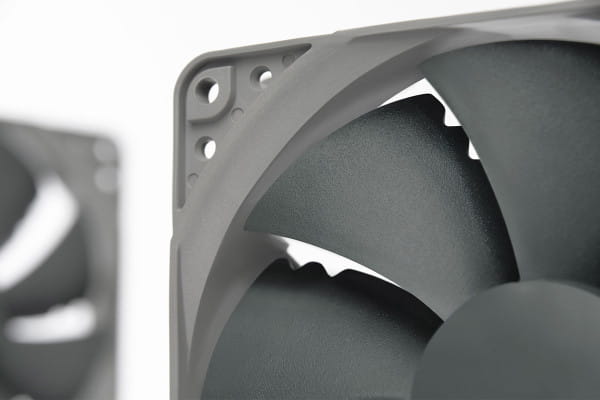

Blade geometry: Pressure-optimized Nine Blade Design with Vortex-Control Notches
Rotational speed (+/- 10%): 1700 RPM
Min. rotational speed (PWM, +/-20%): 450 RPM
Airflow: 120,2 m³/h
Acoustical noise: 25,1 dB(A)
Static pressure: 2,83 mm H₂O
Max. input power: 1,08 W
Max. input current: 0,09 A
Operating voltage: 12 V
MTTF: > 150.000 h
Warranty: 6 years

Scope of delivery

Fan screws

Product details

Article no:	1020553
Manufacturer no:	NF-P12 redux 1700 PWM
EAN:	9010018100365
Weight:	0,244 kg
Available:	Currently not available

Manufacturer:	Noctua
Rated speed range:	1000 - 1450 U/min
Air conveying area:	100 - 149 m³/h
Air flow rate:	120,2 m³/h
Pressure:	2,83mm H2O
Color Frame:	Gray
Rated speed:	1200 U/min
Color Rotor:	Black
Nominal voltage:	12V DC
Size:	120mm
Volume:	25,1 dB(A)
RPM signal transmission:	Yes
Volume range:	20 - 29,9 dB(A)
Starting voltage:	5V
Lebensdauer (bei 25°C):	150.000 h
Power connection:	4Pin
Dimensions:	120 x 120 x 25mm
LED:	Unavailable
Power consumption:	1,08W
