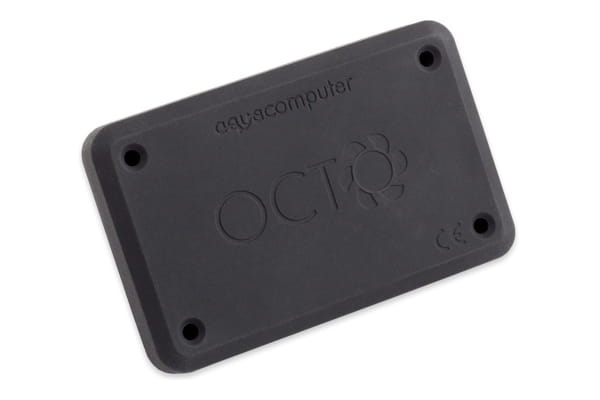

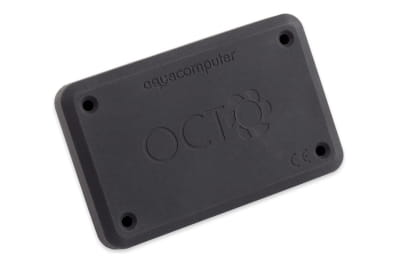

CON Aquacomputer OCTO Lüftersteuerung für PWM-Lüfter

Aquacomputer OCTO fan controller for PWM fans

In stock – Ready for immediate dispatch!

Payment by instalments available between 99€ and 5000€ value of goods

646 Visitors show interest

1758 Customers have recently purchased this product.

11,988.80¥ *

Prices incl. VAT plus shipping costs

Please inform me as soon as the product is available again.

CON Aquacomputer OCTO fan controller for PWM fans

11,988.80¥ 0.00¥ Prices incl. VAT plus shipping costs

The effective fan control OCTO from Aqua Computer, impresses with a multitude of connection... more

Close menu

Product information

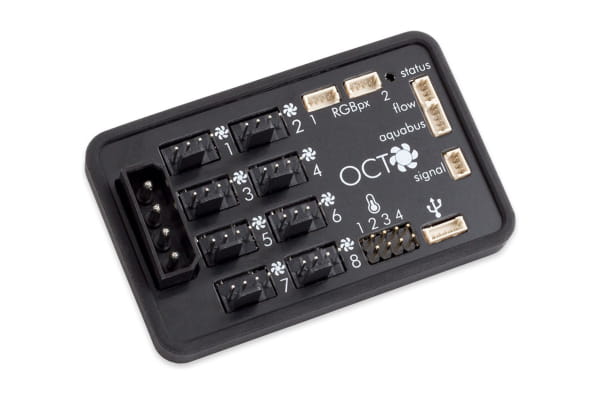

The effective fan control OCTO from Aqua Computer, impresses with a multitude of connection options and settings in the extensive aquasuite software. The fan control offers space for a total of eight PWM fans and also has connections for two RGBx elements, four temperature sensors and a flow sensor.

Due to the maxiamle total power of 100W and 25W per fan channel, splitters can also be used to connect several fans to one channel. In combination with the temperature sensor connections, fans can also be temperature controlled.

The two RGBx outputs allow the settings of digitally controllable LEDs, which are compatible with the RGB products of other manufacturers, even with an optionally available adapter. Due to the flow sensor, the use in a water-cooled PC is also possible.

The OCTO fan control gets its power from a 4-pin Molex power supply. Information and data are directly transmitted to the mainboard via USB 2.0 to be read out in aquasuite. The software can also be used to adjust the finer details in order to optimize your system.

Technical Details:

Dimensions: 76 x 48 x 15 mm
Supply voltage: 5V, 12V
Fan output power: 25W per channel, 100W total power
PWM control signal: 0-100%, resolution 0,1%.

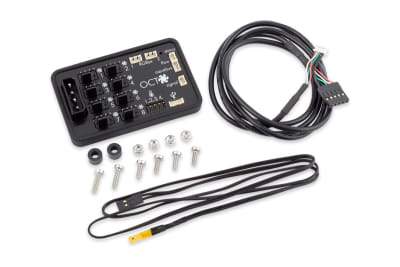

Scope of Delivery: OCTO controller, 1x temperature sensor (length approx. 70cm), 1x internal USB connection cable (length approx. 100cm), mounting material

Product details

Article no:	1019285
Manufacturer no:	53286
EAN:	4260473312413
Weight:	0,104 kg
Available:	There are more than 25 units available

Manufacturer:	Aquacomputer
Number of outputs:	4x 3Pin
Output voltage:	5 - 12V DC
Design:	1x 5.25" drive bay
Display available:	No
Color:	Black
Power supply:	4Pin 5V/12V DC
Temperature inputs:	8x 2Pin (10kOhm)
